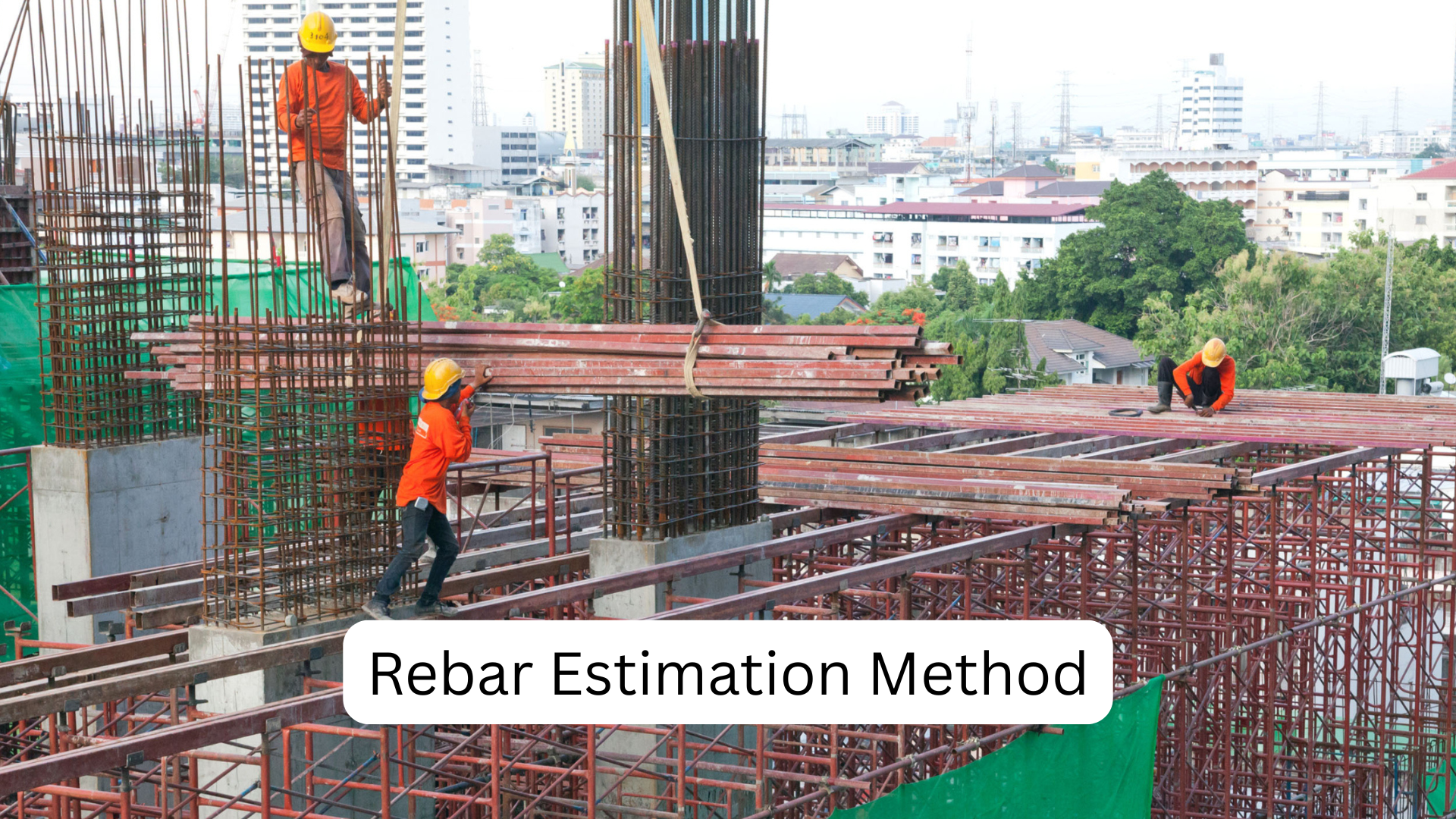

Method of Rebar Estimation
Rebar estimation is an efficient way of calculating the amount of reinforced steel required in a concrete structure according to engineering drawings and specifications. In modern construction, reinforcement steel constitutes up to 60–70% of overall concrete costs. Accurate estimation is an important part to ensure structural safety, minimize material waste, optimize procurement cost, and maintain project schedules and budgets.
An underestimated steel quantity may compromise structural integrity or cause work stoppages, whereas overestimation leads to unnecessary capital lockup and increased waste.
Key Concepts in rebar estimation
Rebar Sizes and Grades
Choosing the correct combination of bar size (for spacing and cover) and grade (for strength and ductility) is important in rebar estimating. The correct selection optimize both safety and cost efficiency.
Rebar’s nominal diameters (in mm) paired with grade designations (e.g., Fe415, Fe500) indicate minimum yield strength in N/mm². Globally, rebars range from very fine 6 mm-diameter rods up to massive 50 mm bars.
Unit Weight and Density of Steel
Understanding the density and unit weight of steel is essential for accurate and efficient construction planning. The density of steel (typically 7850 kg/m³) is used to calculate the total weight of reinforcement required in a project. This helps engineers and quantity surveyors estimate the right quantity of steel—avoiding both shortages and excesses.
The unit weight (78.5 kN/m³), on the other hand, is critical in structural design, as it allows engineers to calculate the dead loads imposed by steel elements in beams, slabs, columns, and foundations. These values also play a key role in cost estimation, as steel is priced by weight.
Cutting Length vs. Center-Line Length vs. Lap Length
The center-line length refers to the measured length of a rebar along its central path in a structural element like a beam, slab, or column. It is typically extracted from construction drawings and serves as the base measurement before considering any hooks, bends, or splices.
The cutting length, on the other hand, is the actual length of the reinforcement bar that needs to be cut on site. It includes the center-line length plus additional allowances for bends, hooks, and any development lengths required to properly anchor the bar in concrete. This makes the cutting length longer than the center-line length. Meanwhile, lap length (or splice length) is the length where two rebars overlap to ensure continuous force transfer, especially when the required bar length exceeds available commercial lengths or in cases of structural extension. Lap length depends on the diameter of the bar and the grade of concrete or steel used, and it is typically taken as 40 to 50 times the bar diameter.
Development Length
Development length is a critical concept in reinforced concrete design, referring to the minimum length of a rebar that must be embedded or anchored in concrete to develop its full strength.
The required development length depends on several factors, including the diameter of the bar, grade of steel, grade of concrete, type of stress (tension or compression), and whether the bar is plain or deformed.
Hook and Bend Allowances
Hook and bend allowances are the extra lengths added to the total cutting length of a rebar to account for bends, hooks, and anchorage as required by design or code specifications.
Hooks are typically used at the ends of rebars to anchor them securely in concrete. Common hook shapes include 90°, 135°, and 180° bends. Each type of hook requires an additional length of steel beyond the straight portion.
According to standard practice (such as IS 2502 or ACI 315), the hook allowance is calculated based on the bar diameter (ϕ). Typical hook lengths are:
90° hook: 8 × ϕ
135° hook: 6 × ϕ + bend radius
180° hook: 9 × ϕ
For example, a 12 mm bar with a 180° hook would need:
Hook length=9×12=108 mm
Bar Bending Schedule (BBS)
A Bar Bending Schedule (BBS) is a comprehensive tabular format used in construction to list and quantify the reinforcement bars (rebars) required for a reinforced concrete structure. It includes detailed information about the size, shape, length, number, and bending details of each type of rebar.
Bar Mark, Bar Diameter (mm), Shape/Type, Length of Each Bar (mm), Number of Bars, Total Length (m), Unit Weight (kg/m), Total Weight (kg)
B1, 12, Straight, 6000, 10, 60.00, 0.888, 53.28
B2, 16, L-bend, 700 + 300 + Bend Allow., 8, 8 × Total Length, 1.58, Weight in kg
Example of BBS
- Bar Mark
- B1
- B2
- Dia (mm)
- 12
- 16
- Shape
- L-Bend
- Straight
- Length (mm)
- 1200 + 300
- 6000
- No. of Bars
- 10
- 8
- Total Length (m)
- 15.00
- 48.00
- Unit Weight (kg/m)
- 0.888
- 1.58
- Total Weight (kg)
- 13.32
- 75.84
Deduction Factors and Wastage Allowances
In rebar estimation, deduction factors and wastage allowances are used to refine the steel quantity calculation, ensuring that estimates are neither overly optimistic nor excessively conservative.
Standard reductions for laps and splices (usually 2–3× bar diameter) plus site wastage allowances (typically 3–5%) to cover cutting losses and unforeseen requirements.
Common Methods of Rebar Estimation
Unit Method
In this method, estimators use standard steel consumption rates based on historical data, engineering norms, or previous project experience. These rates are usually expressed as:
- kg/m² for slabs
- kg/m³ for beams, columns, and footings
Example:
- For slabs: 80 to 120 kg of steel per square meter of slab area
- For columns: 120 to 180 kg of steel per cubic meter of concrete volume
- For beams: 100 to 150 kg/m³
Then, the formula becomes:
Estimated Steel Quantity=Unit Rate×Area or Volume of Element
Center‑Line Method
In this method, you calculate the total centerline length of a structural element, and then multiply it by the number of bars, bar spacing, and bar length adjustments (like bends, hooks, and lap lengths) to arrive at the cutting length and total quantity of reinforcement.
Formula for Cutting Length (Typical):
Cutting Length=Centerline Length+Bend Allowances+Hook Lengths+Lap Length (if any)
Then,
Total Weight=Number of Bars×Cutting Length×Unit Weight
Example
For a beam of 5 meters length:
- Bar diameter = 16 mm
- 2 bars at the top, 2 at the bottom
- Hook length = 9 × ϕ = 144 mm
- Assume no lap
Cutting length per bar = 5 m + 2 × 0.144 m = 5.288 m
Number of bars = 4
Unit weight of 16 mm bar = 1.58 kg/m
Total weight = 4 × 5.288 × 1.58 = 33.37 kg
Bar Bending Schedule (BBS) Method
The Bar Bending Schedule (BBS) Method is the most accurate and detailed method used for rebar estimation in construction projects. It involves creating a comprehensive tabular schedule that lists each reinforcement bar by its size, shape, quantity, and total weight.
Components of a BBS
A Bar Bending Schedule (BBS) is a tabular representation of all reinforcement bars required in a project. It includes:
Bar mark or reference number
Diameter of the bar
Shape code (straight, L-bend, U-shape, etc.)
Length of each bar including bends/hooks
Number of bars
Total length
Unit weight (based on diameter)
Total weight
Steps in the BBS Method
Interpret Structural Drawings: Identify all the rebar types and positions from drawings.
Assign Bar Marks: Each bar is given a unique identification mark.
Calculate Cutting Lengths:
Based on centerline dimensions
Add allowances for bends, hooks, and laps
Use Shape Codes: Standard shapes are assigned codes (as per IS 2502 or BS 8666).
Compute Total Quantities:
Total length = Length of one bar × Number of bars
Total weight = Total length × Unit weight
Weight Method
The weight method is a practical approach used to estimate the quantity of reinforcement steel by calculating the total weight of bars required based on the number, length, and diameter of rebars.
Method
Instead of estimating by length or piece count alone, this method focuses on computing the total weight of rebar using the formula
Weight (kg)=Total Length (m)×Unit Weight (kg/m)
The unit weight of a rebar is derived using the standard steel density and bar diameter:
Unit Weight = d2/162
Where
d = Diameter of bar in mm
162 = Constant (derived from density of steel, i.e., 7850 kg/m³)
Conclusion
Accurate rebar estimation is an important step in the planning and execution of any reinforced concrete project. Whether using manual methods, bar bending schedules, or advanced software-based techniques, each approach plays a crucial role in ensuring structural reliability, cost control, and efficient material management.
Choosing the appropriate estimation method based on project size, complexity, and available resources, engineers and contractors can minimize waste, prevent delays, and optimize overall construction outcomes. As the construction industry evolves, digital transformation, integrating traditional knowledge with modern tools, is key to achieving precision and productivity in rebar estimation.
