Types of Structural Design
How are loads carried, transferred, and resisted by the structure? All such questions lie in the heart of structural design. It decides how buildings, bridges, and infrastructure are made safe, durable, and functional. Structural design ensures structures can withstand gravity, wind, earthquakes, or even the weight of people and furniture.
Different types of structural systems are used based on materials, purpose, load conditions, and economic considerations.
Load-Bearing Structures
A load-bearing structure is one of the oldest and simplest forms of construction. In this system, load-bearing structures use walls to support the weight of the building directly. There are no beams or columns in the structure.
Roof and floor load is transferred vertically through the masonry walls to the foundation. Walls are typically thick to support vertical loads. This method is standard in rural homes, traditional buildings, and old forts. Best suited for low-rise construction and inexpensive for 1-4 stories. However, limitations in layout and design are not of much use for module buildings.
Advantages:
- The load-bearing structure follows a simple design process that is simple to build.
- The use of simple materials eliminates the need for specialized labor
- Provides an efficient way of constructing low-rise buildings.
- Load-bearing structures are pretty effective for constructing small-scale rural or low-rise residential projects.
Disadvantages:
- A load-bearing structure is unsuitable for multi-story buildings with elements like beams and columns.
- Walls must be thick to transfer the roof load through the masonry walls to the foundation. The structure has no beams or columns, so usable space is reduced.
- Large openings, like windows, or flexibility in internal layout are limited in load-bearing structures.
Framed Structures
A framed structure is a system of interconnected beams and columns elements. These elements form a skeleton and give shape and strength to the overall structure. Such a system effectively bears vertical loads (such as self-weight and live load) and lateral loads (like wind or seismic forces) and has a wide application in modern architecture. Multi-story buildings, office towers, hospitals, and shopping malls are all designed using this system due to its structural efficiency and adaptability.
Frame structures allow for greater spans, more open spaces, and flexibility in layout. They are known for their versatility, efficiency, and ability to span large distances while supporting heavy loads.
Advantages:
- Architectural freedom is greater in the case of framed structures because columns and beams are placed in various configurations. It allows easy installation of additional windows, doors, and utilities in the future.
- The strength-to-weight ratio is higher in framed structures. It offers excellent load-bearing capacity with relatively less material and is suitable for vertical construction and high-rises.
- There is no need for load-bearing walls, so thinner partitions increase usable floor area in both residential and commercial buildings.
Disadvantages:
- The initial cost is higher for the frame structure than the basic structure. It requires experienced engineers and architects.
- Framed structures, especially with steel, tend to transmit sound and vibrations more than masonry walls. So soundproofing measures should be considered.
- It requires regular maintenance; steel frames are prone to corrosion and require frequent maintenance, especially painting or anti-rust treatment, in steel-framed buildings.
Truss Structures
A truss is a structural framework of straight members arranged in triangular units. A triangle is a key shape in truss design because it’s highly efficient at distributing forces, either tension or compression.
Truss is ideal for covering long spans without internal support. The load applied to a truss is carried through the structure via axial forces—tension (pulling) or compression (pushing)—in the individual members. Railway bridges, aircraft hangars, factory roofs, and tower structures are made using truss structures, depending on the size and function of the structure.
Advantages:
- Truss geometry distributes loads efficiently through triangular geometry. It provides strong strength for their weight.
- Uniform stress distribution of axial force in truss structure helps in minimizing deflection under load. It helps in maintaining structure over large structures.
- Truss enhances the aesthetic appeal, especially in industrial or modern architectural styles.
- Compared to solid beam structures, trusses use less material and are more economical than solid beams.
Disadvantages:
- Truss is a complex design that requires precise engineering and fabrication. Any error in the angle or length can compromise the structure’s integrity.
- Trusses rely heavily on the strength of joints. So, regular inspection is crucial because poor quality or damaged joints can cause failures.
- Though lightweight, trusses can be visually bulky, which may not suit all architectural styles or spatial constraints.

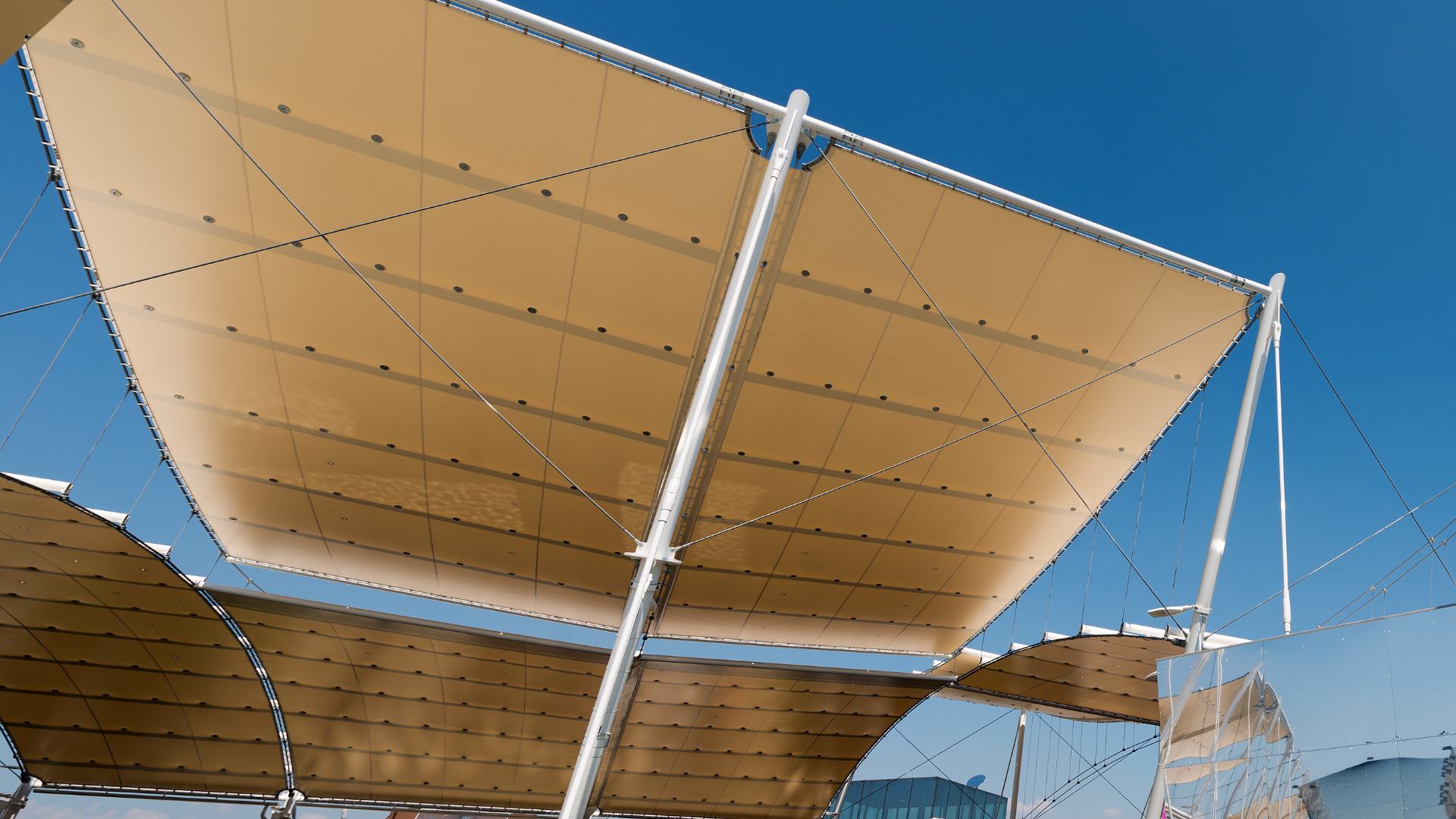

Tensile Structures
A tensile structure is a type of structural design that relies on tension rather than compression or bending to support loads. They use flexible materials such as fabric or cables, which look visually appealing and cover large areas with minimal materials. Fabric and cables used in the structures are held in place under tension with support by masts or compression rings.
Ex: The Millennium Dome in London is a perfect example of a tensile structure.
Advantages:
- Tensile structures are known for their sleek, futuristic, and eye-catching designs. They are lightweight and take less time to erect.
- Tensile structures can form free-flowing organic shapes. In public ads with a dramatic visual, the visual looks appealing to the public.
- Fabric membranes are prefabricated and often require less time for on-site erection compared to conventional roofing systems.
- Many tensile fabrics are translucent, allowing natural light to filter in, reducing the need for artificial lighting during the day.
Disadvantages:
- Fabric membranes are sensitive to wind and vibration. Such structures are not ideal for where the effect of environmental factors is high.
- The lightweight fabric provides limited insulation or soundproofing. Such structure may be problematic in noisy environments or when energy efficiency is a priority. Also, material degradation is high due to UV exposure, pollution, and weathering.
- Specialized design software and engineering knowledge are required to install such structures. Tension forces and load behavior are complex and demand precise analysis.
- Fabric membranes have a shorter lifespan (typically 15–30 years) compared to traditional materials like concrete or steel. It may degrade over time and require replacement.
Shell Structures
A shell structure is a type of structure that uses a curved, thin surface to carry loads. Through the help of membrane action, structures use internal compression and tension forces rather than bending.
Geometry plays a significant role in such structures where the load is transferred along the surface and moves to the supports at the base.
Ex: The Lotus temple in delhi is a famous example where the artistic form also serves a structural purpose.
Advantages:
- Due to their form, less material is required to cover large spaces compared to flat slabs or beams. Shell Structures offers cost savings in material usage.
- Naturally, curved forms like domes and hyperbolic paraboloids look aesthetically pleasing and structurally efficient.
- Shell structures are suitable for long-span roofs because they distribute loads uniformly through their curved surfaces. It enhances structural integrity and reduces stress concentration.
- The monolithic behavior of shell structures provides a continuous surface that helps make structures resilient under seismic loads.
Disadvantages:
- Construction of curved surfaces requires specialized skills. It often involves skilled craftsmanship, including formwork, scaffolding, and molding techniques.
- Difficult to modify after construction
- The shell structure’s initial cost is generally higher than the standard or slab system. It becomes economical after a specific period.
- Limited to certain building types because the shape of shell structures dictates the internal space.
Pre-stressed and Post-tensioned Structures
In regular concrete, cracks can form easily under heavy loads because concrete is strong in compression but weak in tension. To increase the load-carrying capacity of concrete, prestressing and post-tensioning techniques are used in modern construction. Introducing internal compressive forces helps structures resist external tensile stresses effectively.
In prestressed concrete, the steel cables (called tendons) are stretched first, and then concrete is poured around them. Whereas in a post-tension system, the concrete is poured first, and then the tendons are stretched later.
Such techniques allow for thinner slabs and longer spans with adequate control of deflection and cracking.
Advantage:
- No use of columns allows large uninterrupted spans. Such a structure is ideal for bridges, parking garages, auditoriums, and flyovers.
- Pre-compression reduces or eliminates tensile cracking in concrete, which results in longer-lasting, more durable structures.
- Efficient use of materials allows for slimmer structural elements that reduce dead load and save on materials like concrete and rebar.
Disadvantages:
- Complex structures require specialized equipment such as tensioning jacks, anchors, and ducts.
- It is complex and costly to repair or alter because it involves expertise for inspection and repair.
- Higher upfront costs due to equipment, skilled labor, and post-tensioning systems

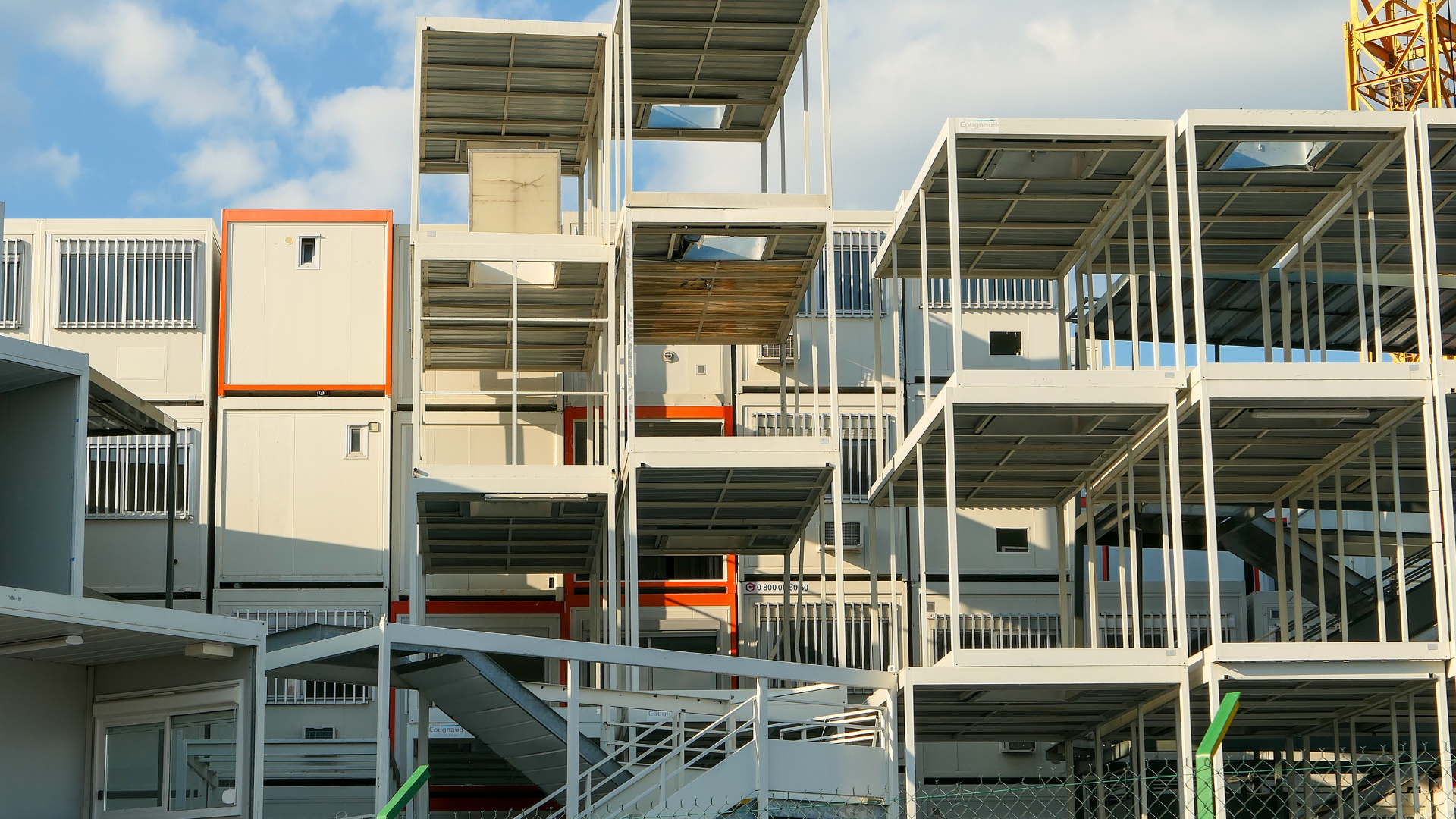

Modular and Prefabricated Structures
Modular and prefabricated structures are both construction methods where parts of a building or structure are made off-site in a factory and then transported to the site and assembled.
This approach is faster, more efficient, and often more environmentally friendly than traditional construction. These systems are quick, cost-effective, and ideal for repetitive or time-sensitive construction.
However, design flexibility is often limited, and transportation of large modules can be challenging.
Advantages:
- Off-site manufacturing and on-site foundation work happen simultaneously, reducing project timelines by 30–50%.
- Better quality is possible through the division of work, which allows for better precision, quality checks, and weather-protected production.
- Modules can be stacked, relocated, or reconfigured, making them adaptable.
Disadvantages:
- Limited architectural flexibility because after modules are fabricated, last-minute changes are difficult and costly to implement.
- Transportation of modules is challenging due to transportation and manufacturing constraints.
- Jointing systems may affect durability because they require precise planning for seamless joining of prefabricated components.
Composite structures
Composite structure is a type of structure that is made by combining two or more different materials. The final structure takes advantage of the strength of each material and is more efficient than if only one material is used.
Advantages:
The strength-to-weight ratio is high in composite structures that strongly support their weight.
The option of design flexibility is excellent. You can tailor composites to achieve specific mechanical properties.
Composite structures don’t rust or corrode easily like metal. Such structure is excellent for marine and chemical environments.
Disadvantages:
The construction of composite structures is a complex task. It involves fabrication techniques (like layup, vacuum bagging, and autoclaving) that require skilled labor and precise control.
The initial cost of composite structures is high because different materials are used in construction.
Recycling of material in a composite structure is a big problem. Disposal and recycling are challenging due to the mix of materials.
Conclusion
Structural design is fundamental to ensuring the safety, efficiency, and longevity of a construction project. From load-bearing and framed structures to truss, shell, and pre-engineered designs, each type serves a specific purpose based on material choice, architectural needs, and functional requirements.
In today’s world, whether you’re building skyscrapers, bridges, or industrial facilities, selecting the right structural design is not just a technical decision—it’s a foundational step toward building a resilient and future-ready world.
